| Part Number | ESXWMM85-M50C | Distance | 50m |
| Form Factor | OSFP | Connector | MPO-12(APC) |
| Wavelength | 850nm | Transmitter | VCSEL |
| Receiver | PIN | Media | Multi-Mode Fiber(MMF) |
| Power Consumption | <16W | Protocol | 800G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ |
800GAUI-8, 8x106.25 Gbps electrical interface
8x VCSEL arrays and 8x PIN PD arrays

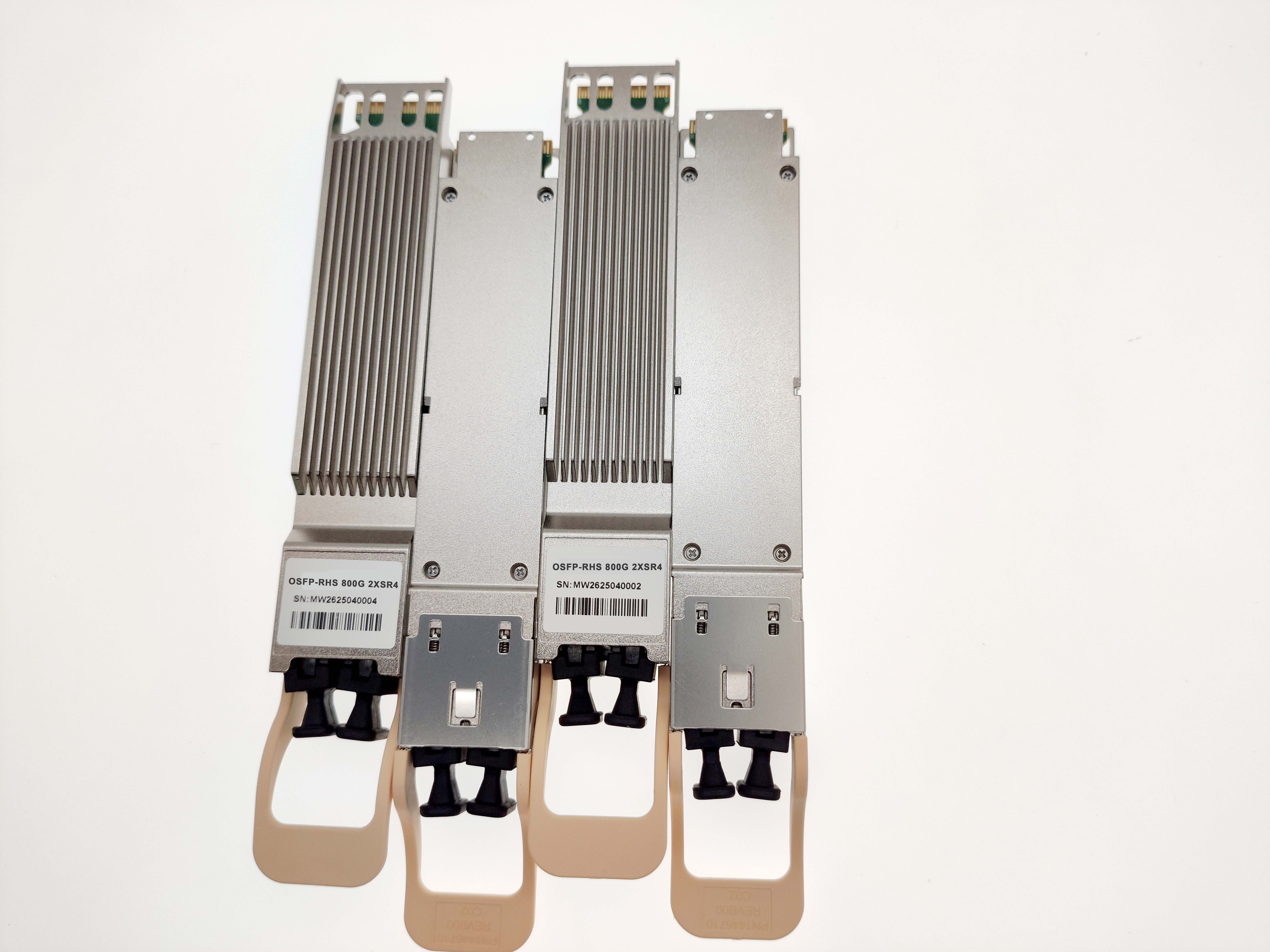

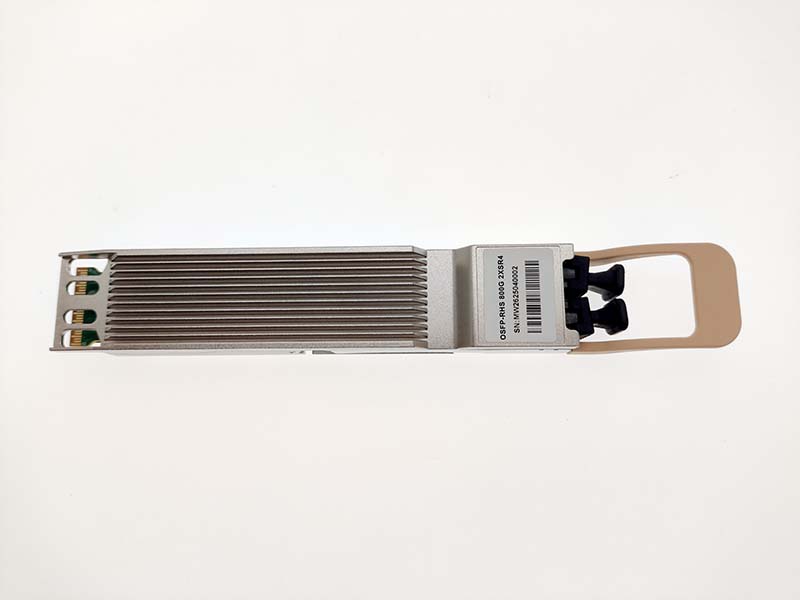

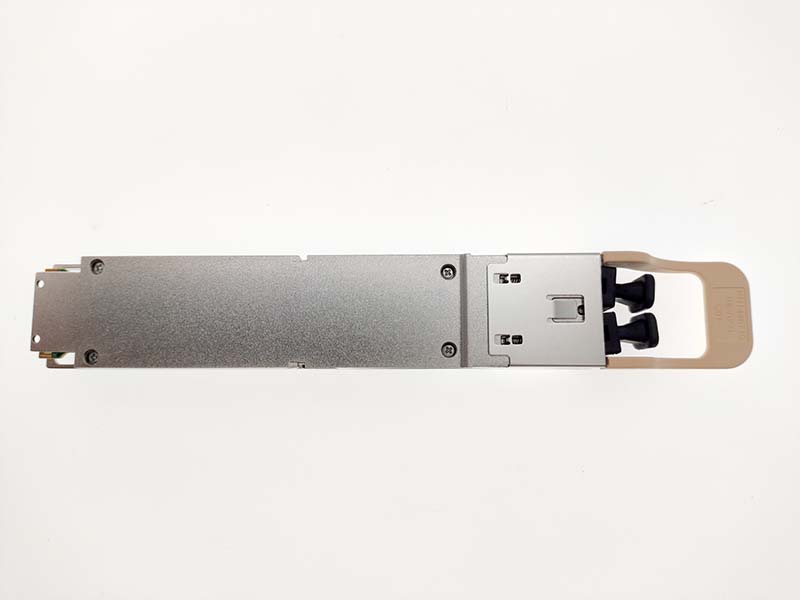

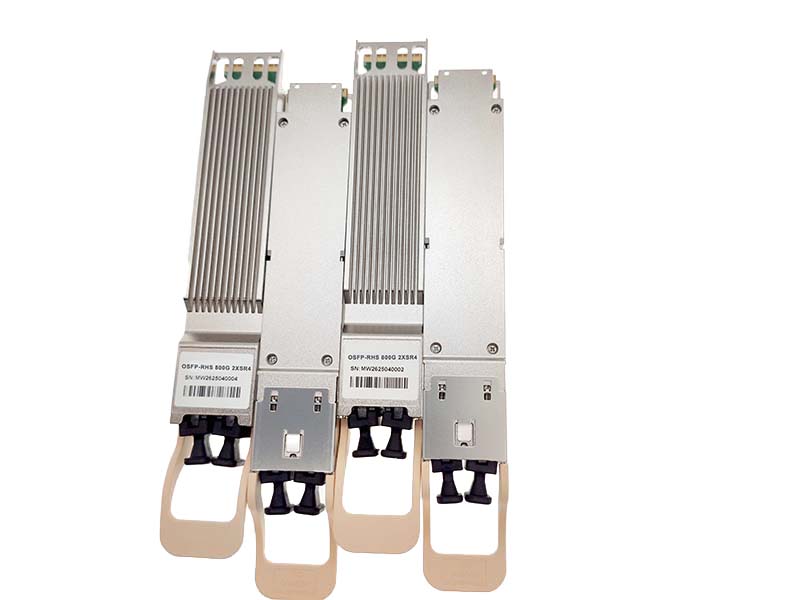

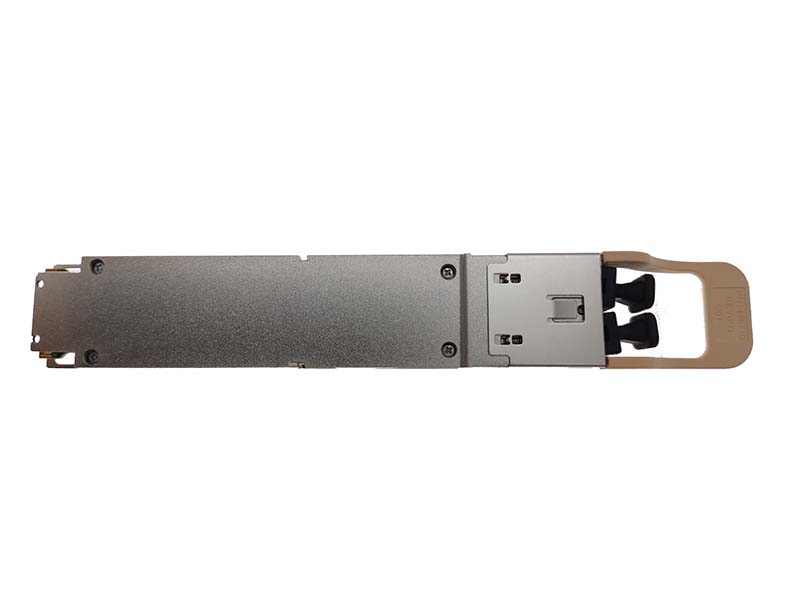

Hot-pluggable OSFP or OSFP-RHS form factor
Optical connector: Dual MPO- 12 APC
+3.3V single power supply
power Consumption: <16W
Case operating temperature: 0°C to +70°C
RoHS Compliant
Supports an aggregate data rate of 800Gbps
Based on advanced 850nm VCSEL technology
Dual 400G SR4 architecture for flexible network deployment
Equipped with 2× MPO-12 APC optical interfaces
Up to 50m transmission over OM4 multimode fiber
Integrated Heat Sink (IHS) for superior thermal management
Low power consumption for improved energy efficiency
Compliant with OSFP MSA specifications
Hot-pluggable design for easy installation and maintenance
Optimized for 800G Ethernet and AI networking applications
AI and GPU training clusters
Hyperscale data centers
High-Performance Computing (HPC)
Cloud computing infrastructures
Spine-Leaf network architectures
800G Ethernet switch interconnections
High-speed InfiniBand networks
Machine learning and big data platforms
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
