| Part Number | ESXWII11-M06C | Cable Length | 0.5m~6m |
| Form Factor | OSFP | Power Consumption | <12W |
| Wire AWG | 26~32AWG | Jacket Material | PET |
| Case Temperature(℃) | 0℃ to +70℃ | Application | Datacenter |
Product Features
Compliant with OSFP MSA and CMIS5.2
Support 8x112G (PAM4) electrical data rates
Enables 800Gb/s transmission
Selectable: 26AWG, 28AWG, 30AWG, 32AWG
Link length up to 6m
Typical power consumption <12W per end
Single +3.3V power supply
BER (Post-FEC) <10^-15
Product Highlights

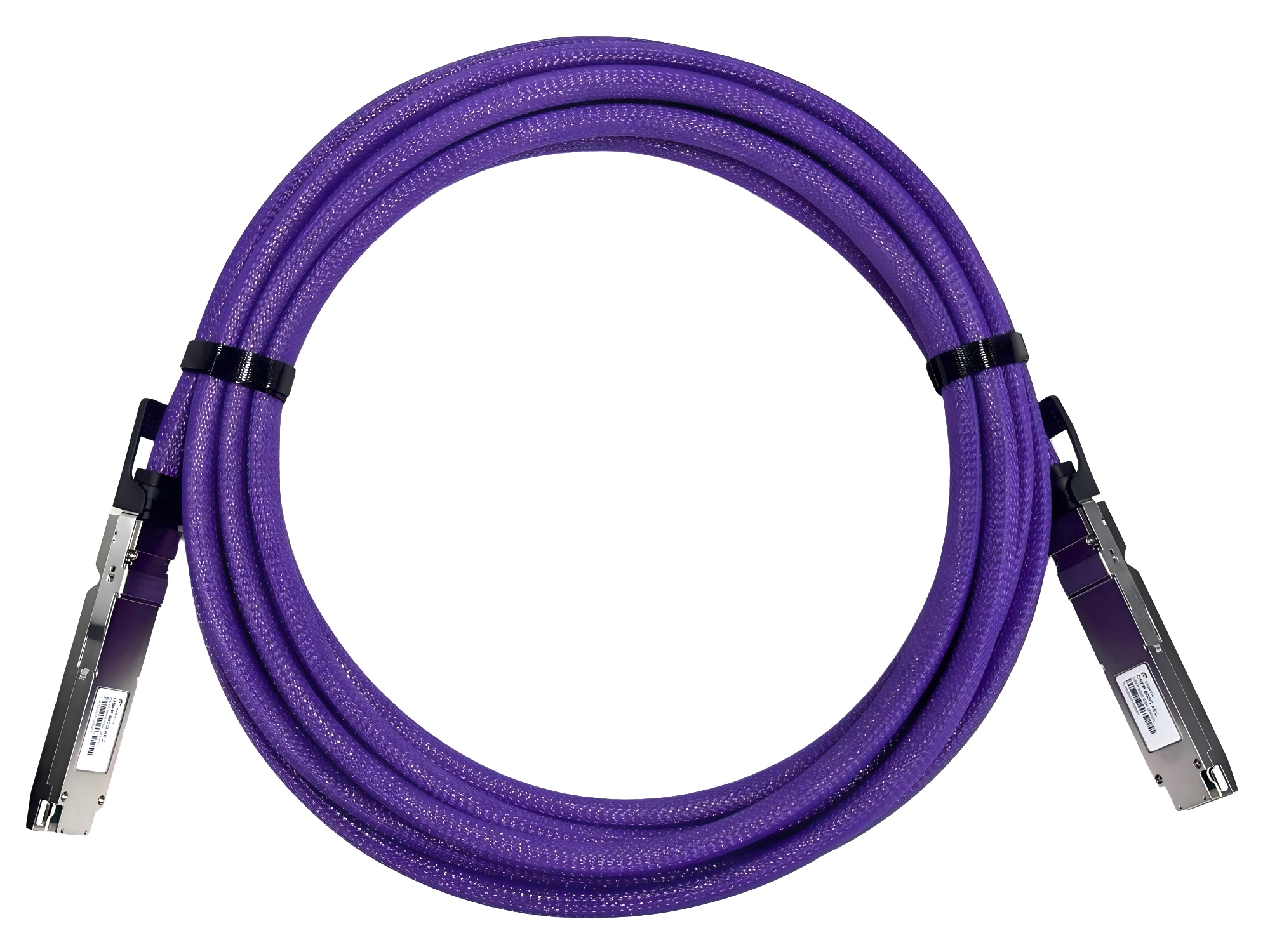

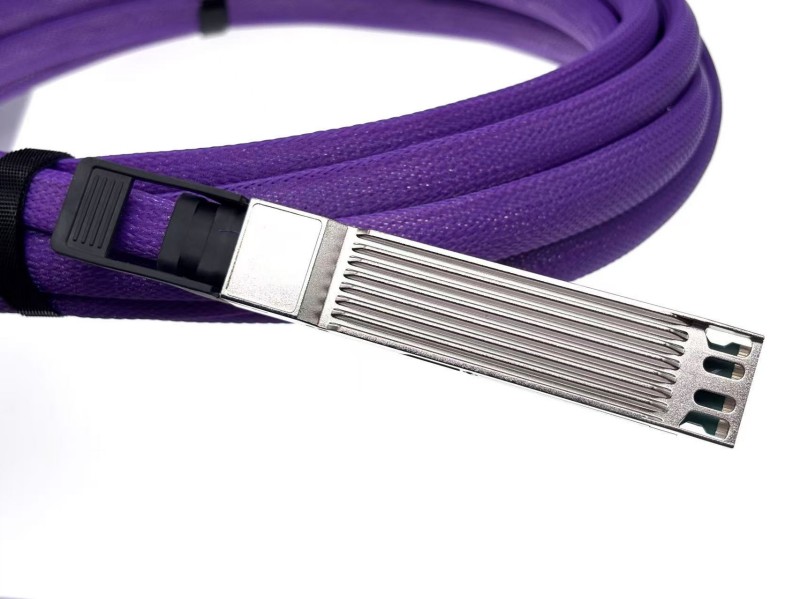

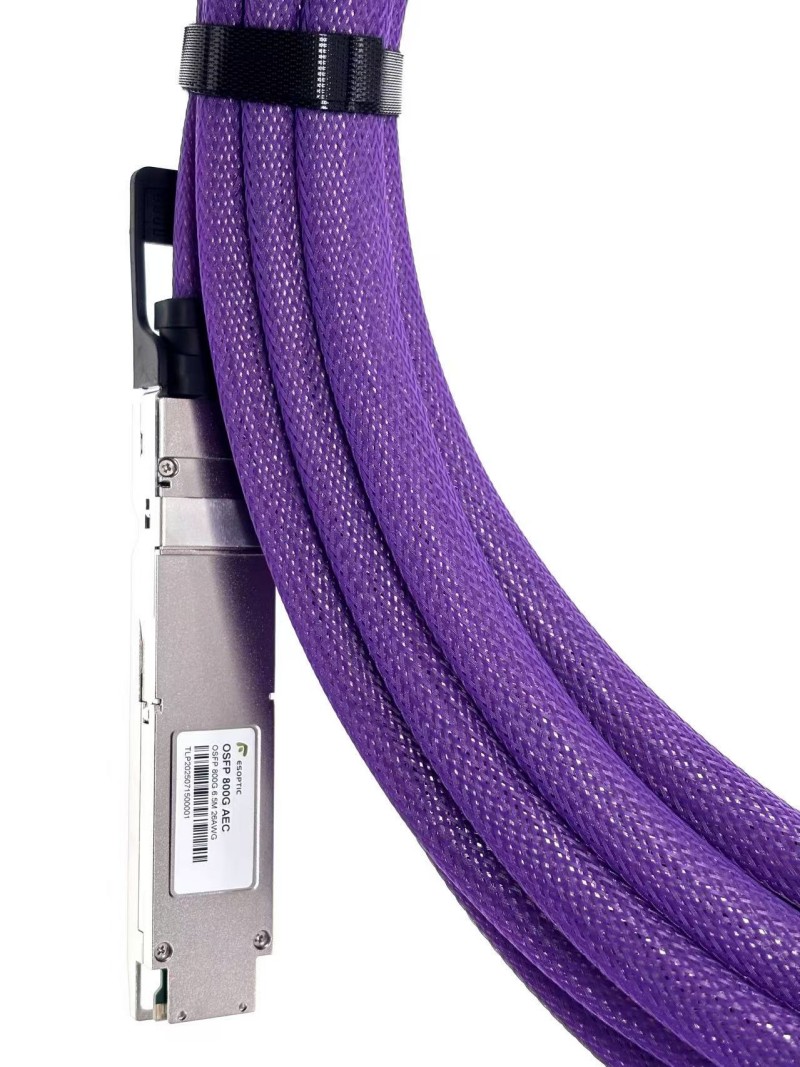

The 800G OSFP Active Electrical Cable (AEC) up to 6m is engineered to meet the growing demands of high-speed data center interconnects. Combining the advantages of traditional DAC with active signal conditioning, it provides enhanced reach and signal integrity while maintaining low power consumption. Supporting 800G high-bandwidth transmission, this AEC ensures low latency and reliable performance, making it ideal for next-generation cloud, AI, and HPC applications. Its OSFP form factor delivers excellent thermal management and high-density connectivity, allowing seamless deployment in modern rack systems. With plug-and-play installation and strong compatibility with mainstream switches and servers, the 800G OSFP AEC simplifies network upgrades while reducing total cost of ownership. Designed for scalability and long-term reliability, it offers a flexible, efficient, and energy-conscious interconnect solution for data-intensive environments.
The 800G OSFP AEC up to 6m is designed for high-performance computing and AI training clusters that require massive data throughput with minimal latency. By providing stable 800G transmission and superior signal integrity, it ensures fast, reliable interconnects between GPUs, accelerators, and servers in dense rack environments.
In large-scale cloud and enterprise data centers, this AEC offers efficient short-reach connectivity between top-of-rack switches, spine switches, and servers. Its active design extends transmission distance beyond passive DAC limits, while maintaining low power consumption and easy deployment, supporting smooth network upgrades for next-generation workloads.
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Put DAC module into electrostatic bag (note module direction) and label.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.
According to the packing quantity requirements, put the products packed in anti-static ziplock bags into packaging cartons.
The space left in the trunk must be filled with anti-static foam to ensure that it will not be damaged in transit.
The outer case label is attached to the side position of the outer case.Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 4 layers of wrapping film protection.
※The space in the box and the space in the mantissa box shall be filled with foam.
